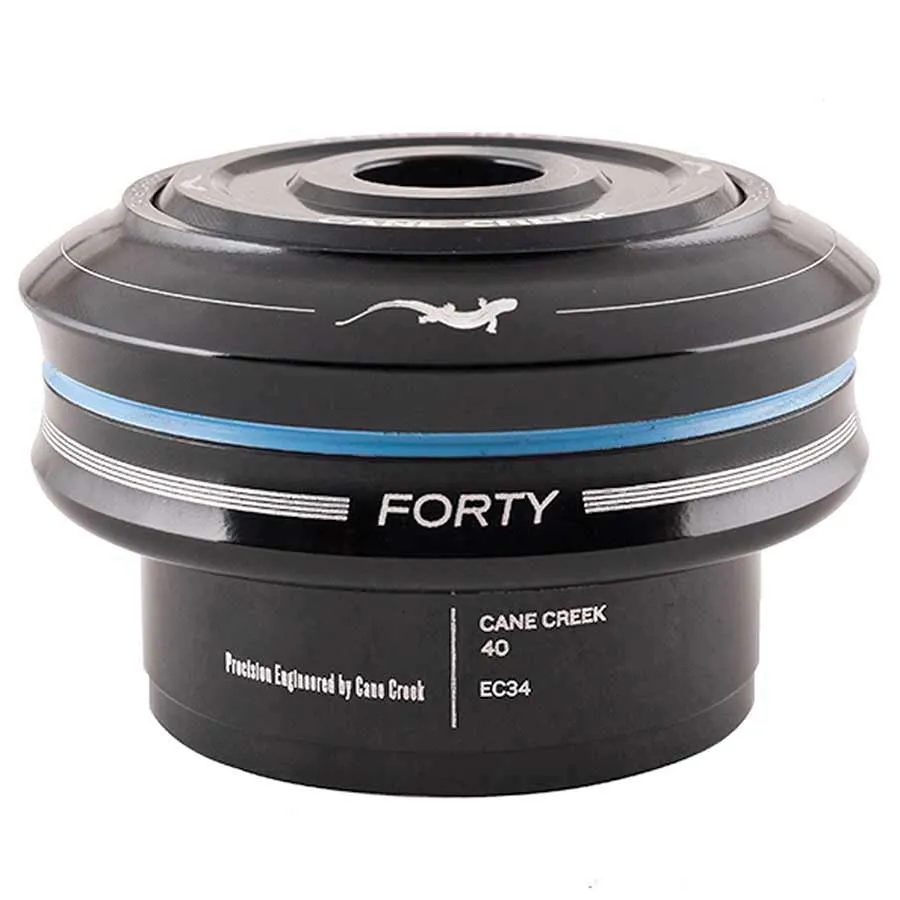

Cane Creek’s 40-Series sets the standard for performance, durability and value. Drawing from the premium 110-Series design, the 40-Series includes all the features necessary for a durable, lightweight, long-lasting, and easy-to-use headset. With consistent graphics, interchangeable parts and over 40 configurations to meet almost every size need.
Sold in straight and tapered assemblies or tops bottoms, tops are available in either short (9mm) or tall (15mm) stack height bearing covers.
FEATURES
SPECS
FEATURES:
- 40-Series Represents the Perfect Balance of Performance, Durability and Value
- 6061-T6 Aluminum Cover
- Innovative Clip-Seal Seals the Top Assembly and Captures the Compression Ring
- Interlok Spacer Compatible
- Sealed Black Oxide Steel Cartridge Bearing
- Consistent Stack Heights Across 10, 40 and 110-Series
- Internal Parts Are Cross-Compatible Across 10, 40 and 110-Series
- Easily replaceable, sealed cartridge bearings
- ZN40 Bearings
- Precision engineered by Cane Creek in Fletcher, NC
SPECS:
- Material: Aluminum
- Bearing Grade: Sealed cartridge
- SHIS Upper: EC34/28.6
- Primary Color: Black
- Headset Type: External, Threadless
- Steer Tube: 1-1/8''
- Headset Position: Upper
- Stack Height: 16
- Upper Cup: 34mm
- Approximate Weight: 50g
- S.H.I.S.: EC34/28.6/H16
